Navex™

Retro-reflective disks for high accuracy

A swirling, wave-like formation of glowing blue dots on a black background, resembling spherical fiducials in a digital or abstract 3D energy field.

Navex

Atracsys high-accuracy passive technology

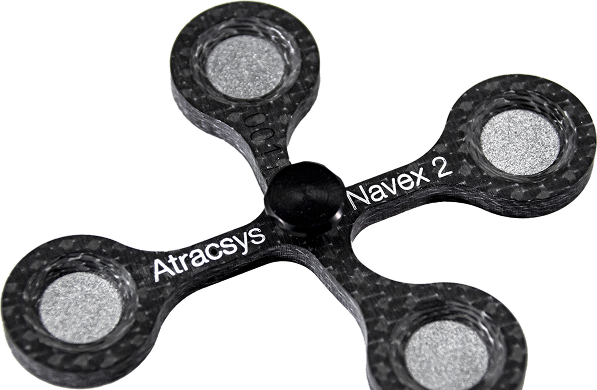

Navex™ patented technology combines two key components to ensure ease of use and optimal 6D pose calculation: a high-precision marker shield made from Carbon Fiber/PEEK, and replaceable reflective disks. The disks are clipped onto the rear side of the shield, allowing tracking accuracy to depend solely on the exceptional precision of the shield’s manufacturing.

Main features

Five black medical devices with circular pads, joints, and flat fiducials for tracking are arranged on a light gray background. One device features an extended metal rod. All devices are labeled Akreosys.

Navex™ markers are thoughtfully engineered with surgical environments in mind and are readily available off-the-shelf for engineering development and system integration in the form of five distinct high accuracy marker geometries

Carbon fiber composite

Reprocessable

Flat fiducial tracking disks

High accuracy of <0.2mm up to 40°*

* Measured with a fTk500 device at 1.6m distance

Product range

Navex

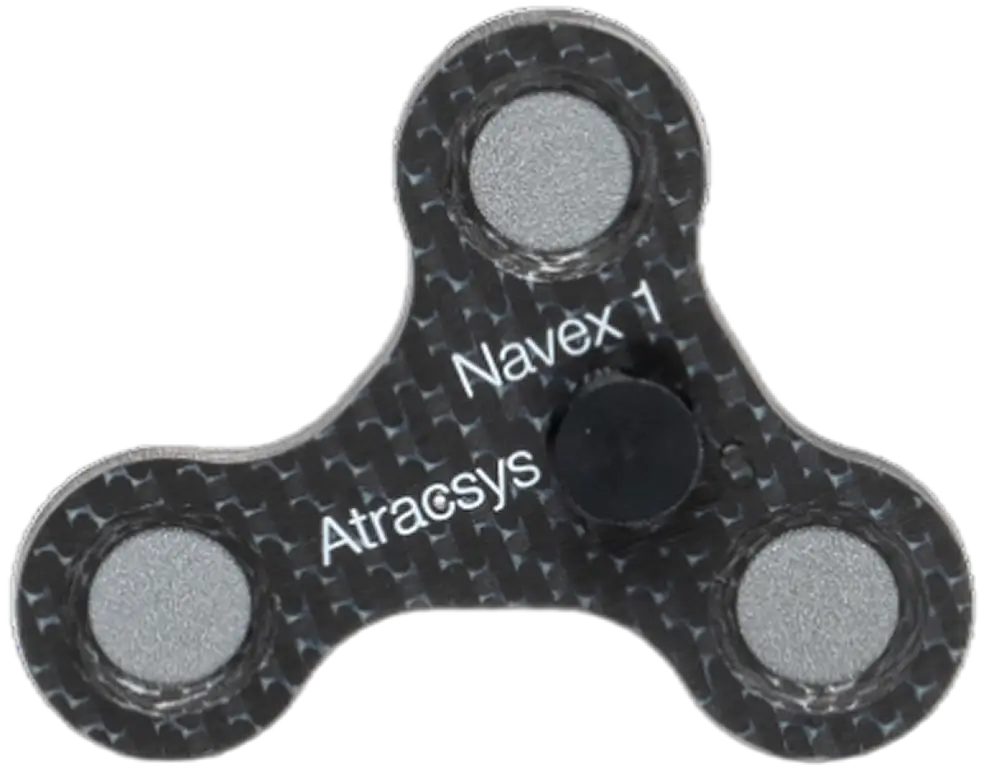

Passive Navex™ Shield Geometry 1

Shield for three reflective disks
Small size: 56 mm x 50.6 mm
Carbon Fibre/PEEK 4mm
Central M4 screw fixation in medical grade peek
3 passive reflective disks included

Navex

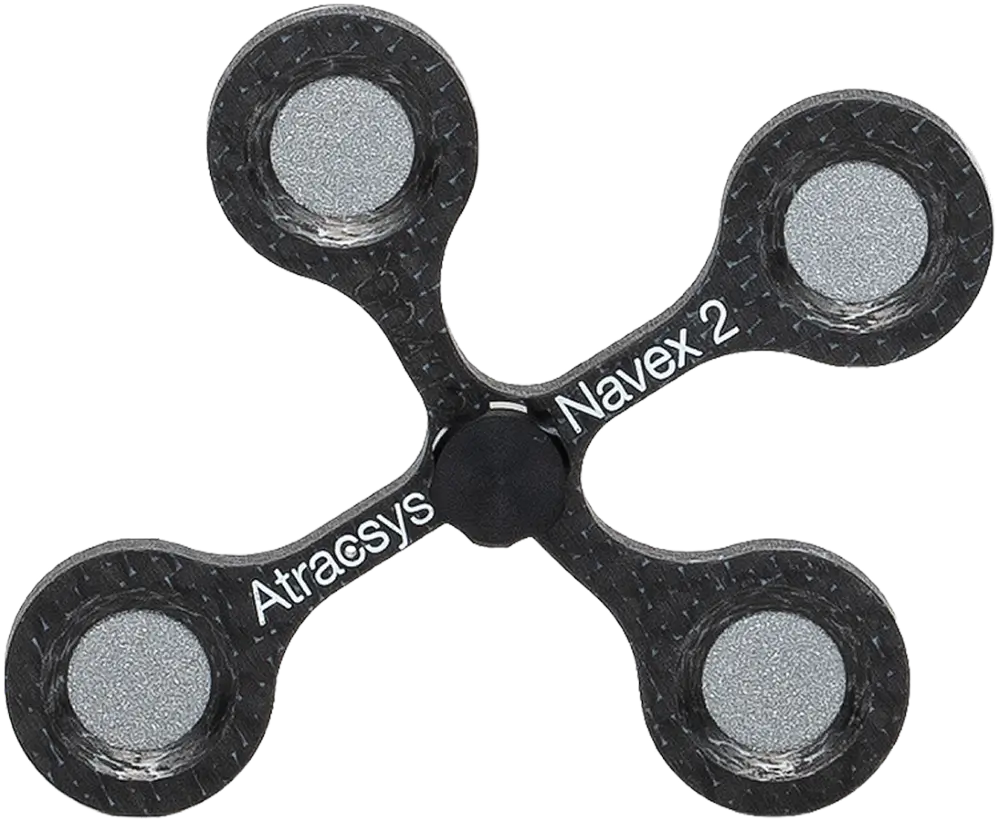

Passive Navex™ Shield Geometry 2

Shield for four reflective disks
Small size: 66.6 mm x 77.7 mm
Carbon Fibre/PEEK 4 mm
Central M4 screw fixation in medical grade peek
4 passive reflective disks included

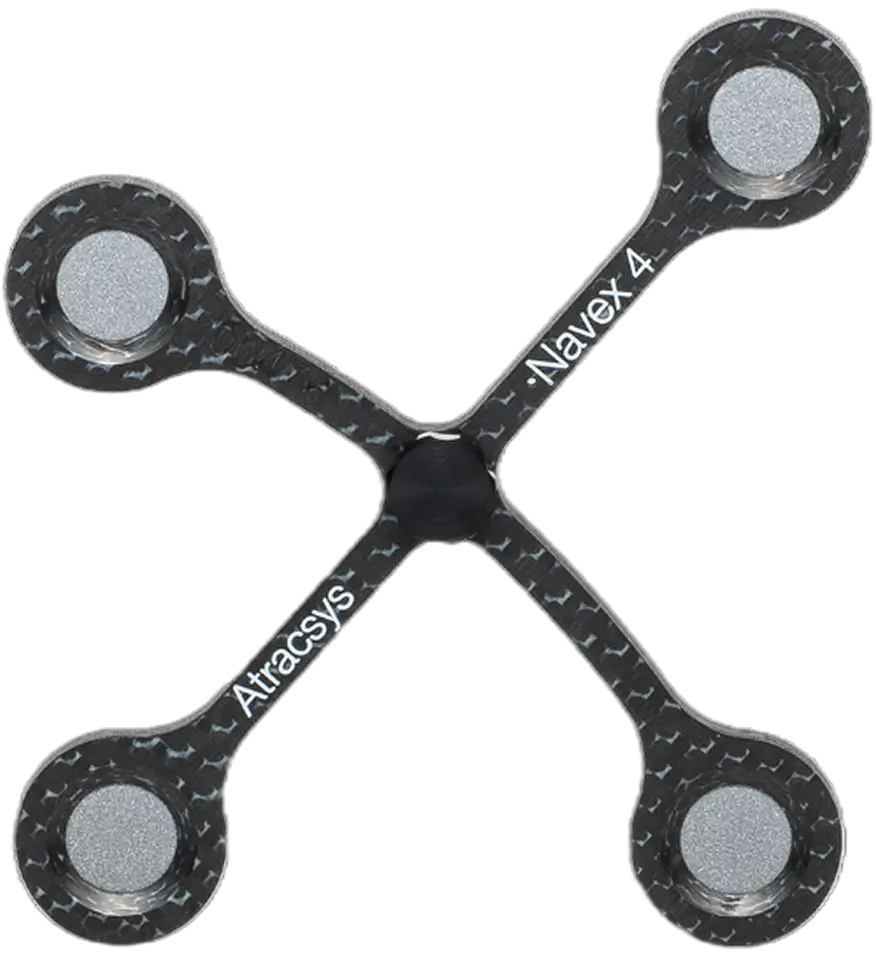

Passive Navex™ Shield Geometry 4

Shield for four reflective disks
Large size: 94 mm x 105.6 mm
Carbon Fibre/PEEK 4 mm
Central M4 screw fixation in medical grade peek
4 passive reflective disks included

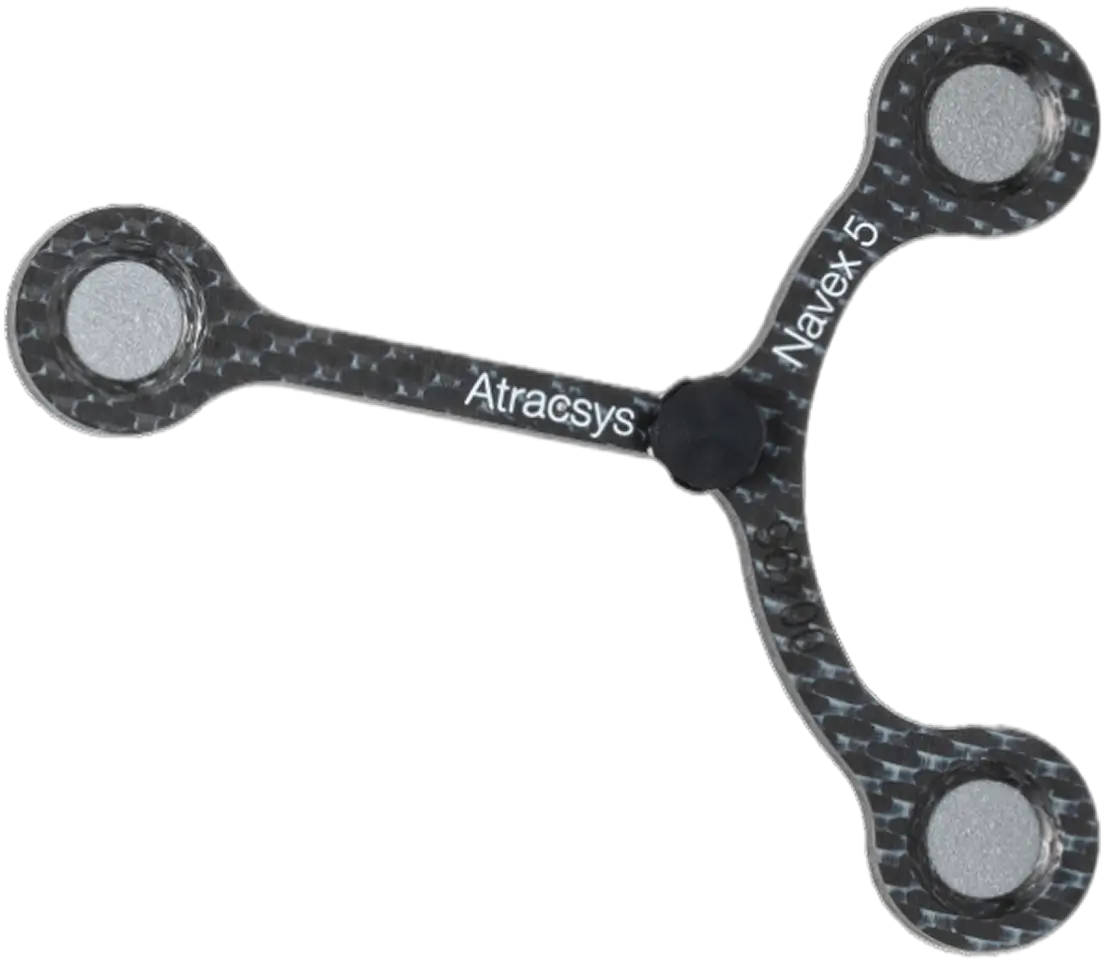

A black, three-armed medical tracking marker with flat fiducials and round silver sensors at each end, labeled Atracsys and Navex 5 on the arms.

Passive Navex™ Shield Geometry 5

Shield for three reflective disks
Large size: 77.9 mm x 99 mm
Carbon Fibre/PEEK 4 mm
Central M4 screw fixation in medical grade peek
3 passive reflective disks included

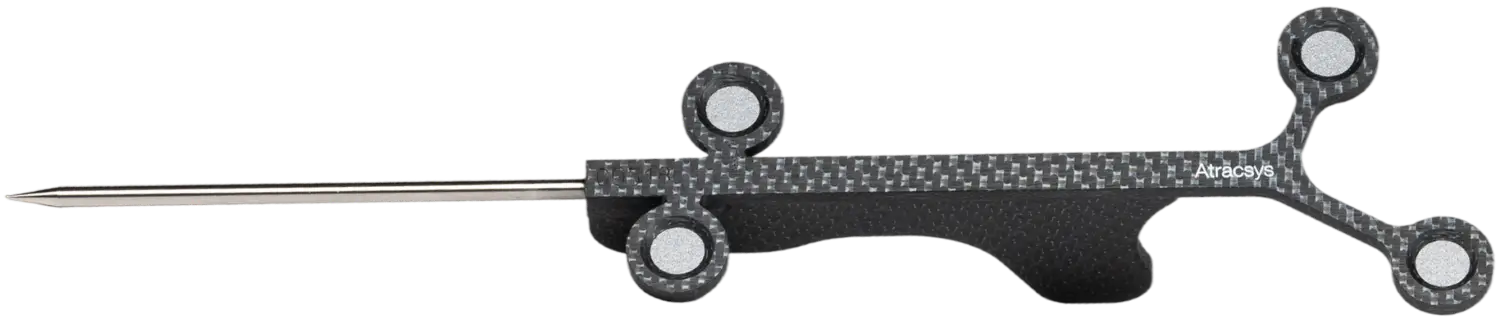

A precision surgical instrument with a textured handle, three adjustment knobs, and a long, pointed metal shaft labeled Arcasys—ideal for flat fiducials tracking during delicate procedures.

Passive Navex™ Pointer

Shield for four reflective disks
4 passive reflecting disks included
Length with shaft: 274 mm
Stainless steel 316 L shaft
Pointer tip: 1 mm diameter sphere

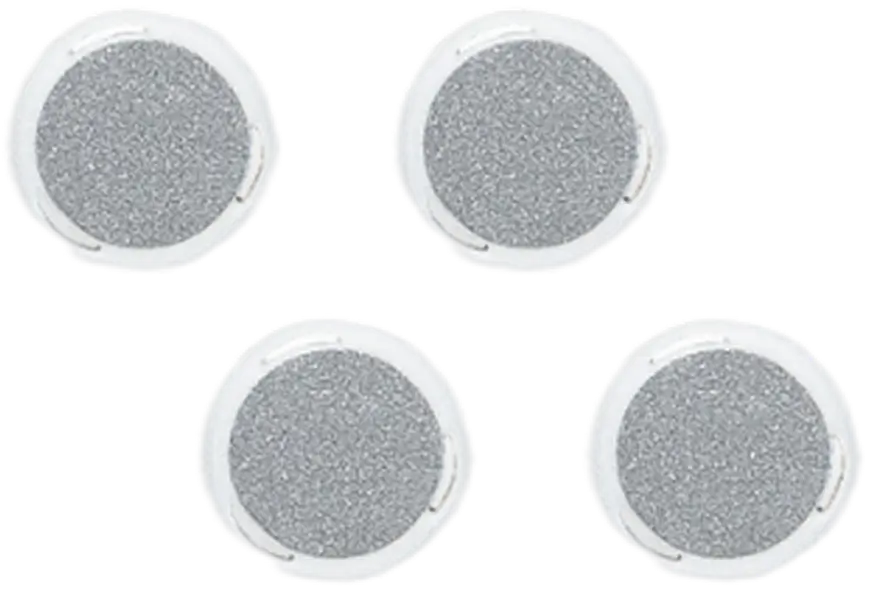

Four round, flat fiducials with white rims and gray, textured centers are evenly spaced in a square arrangement on a white background, ideal for tracking applications.

Passive Reflective Disks Navex™

Compatible with all Navex™ marker shields
Not sterile
Sold in single units
