fusionTrack™ 500

Our most trusted low-latency
optical tracking system

A computer-generated image of a spiraling structure made up of many glowing blue dots, resembling a double helix or abstract DNA strand, set against a black background, evokes the precision required for low latency tracking systems.

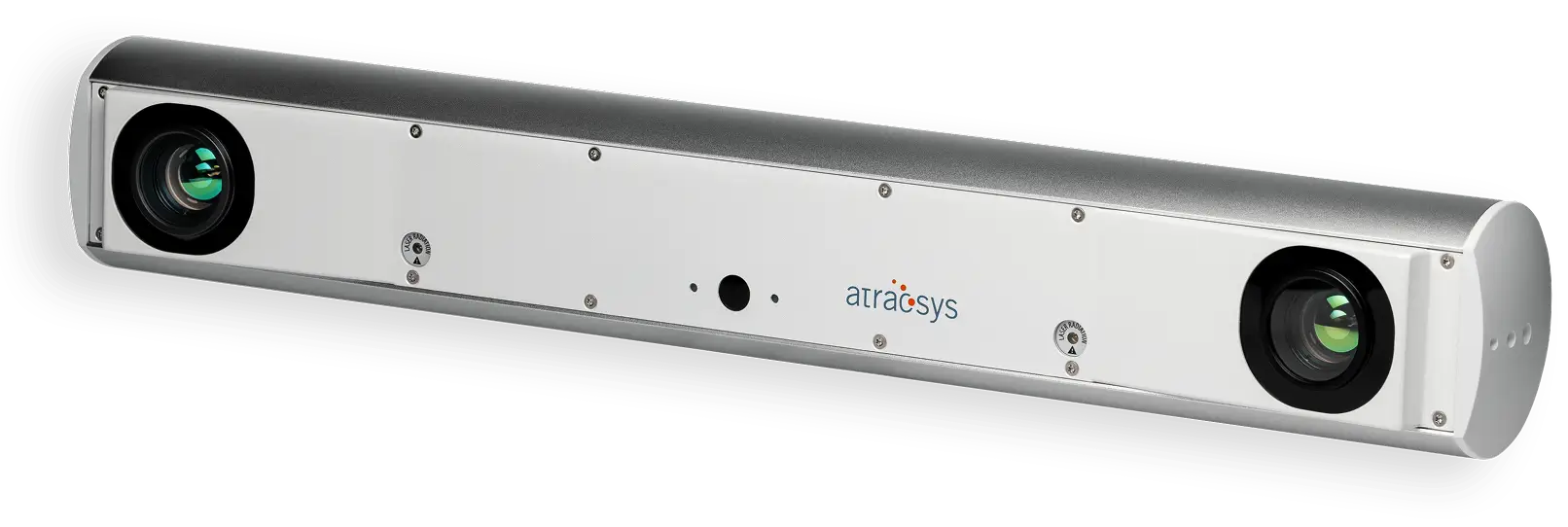

ftk500 fusiontrack camera

Ultimate accuracy meets maximum speed

Excellence begins with precision.

fusionTrack™ 500 is Atracsys optical tracking system offering ultra-low latency, cutting-edge precision and a very high measurement rate of 335 Hz in large working volume. It excels in demanding robotics applications requiring cutting-edge accuracy, speed and exceptional reliability.

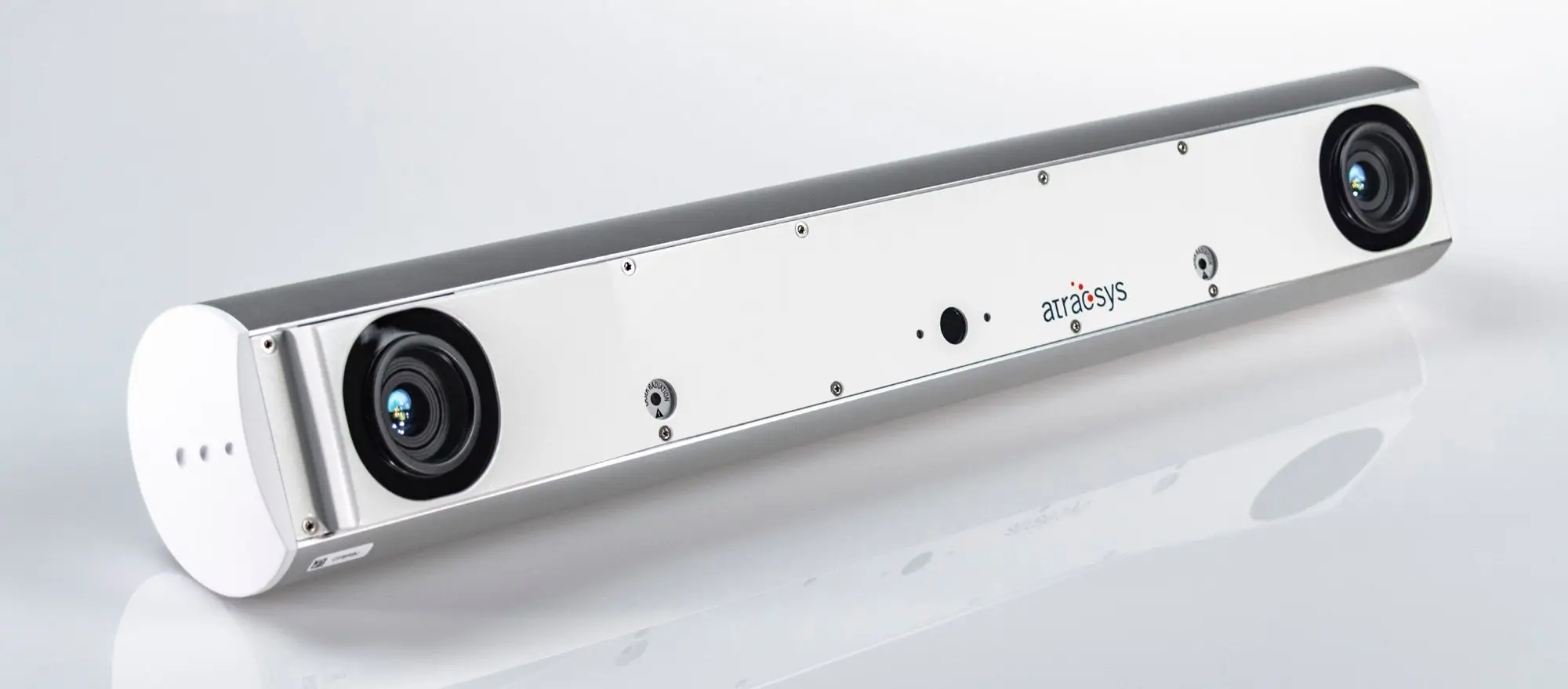

A sleek, rectangular sensor device with low latency tracking features, two round camera lenses at each end, branded with artraySys in the center, placed on a reflective white surface.

The fusionTrack™ 500 is a real-time optical tracking system that enables passive and active marker tracking with exceptional accuracy.

Equipped with two cameras, it uses advanced triangulation to deliver precise 6DoF pose tracking (x, y, z, α, β, γ) at a true, non-interpolated rate of 335 Hz.

Main features

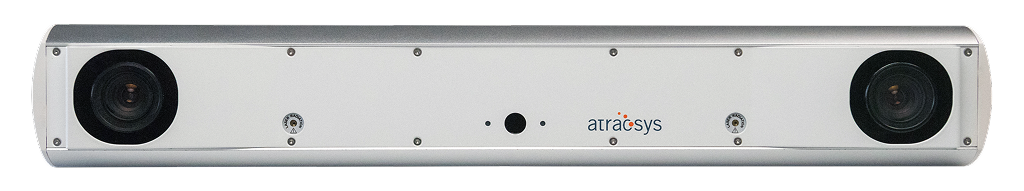

A rectangular silver motion capture sensor device featuring two camera lenses at each end and the atraxsys logo in the center, designed for low latency tracking.

Real-time high-speed of 335 Hz and low latency (4 ms):
unlock applications never imagined before

High-precision: 0.08 mm RMS up to 2.0 m

Ethernet connection for both data and power (PoE+)

Supports both active and passive marker technologies

Multi-level fault checking: keep full control with a real-time access to several levels of error information

Download brochure

The edge

Ecosystem

Atracsys offers a complete ecosystem of solutions, designed to enable higher accuracy and streamline integration: cameras, markers, verification and calibration tools, SDK and a dedicated customer service

A white icon of three horizontal sliders with circular knobs is centered on a light gray background, suggesting settings or controls for 3D reconstruction tracking customization or adjustment.

SDK

Atracsys SDK provide access to data across all processing stages—from raw images and 3D fiducial positions to full marker pose—along with multi-level fault checking for real-time error diagnostics at every step

White icon of a computer monitor displaying a code symbol (angle brackets) with a gear beside it, all inside a circle, representing software development or 3D reconstruction tracking.

Support

Tailored evaluations, R&D consultancies and dedicated services to fast-track your development and deployment timeline, step by step

White icon of a headset with microphone inside a circle on a light gray background, symbolizing customer support or call center services, ideal for platforms offering 3D reconstruction tracking assistance.

Specifications

Size & Weight

528 mm x 80 mm x 88 mm
2.3 kg
Accuracy 1

0.08 mm RMS up to 2.0 m
0.11 mm RMS up to 2.4 m
0.15 mm RMS up to 2.8 m
Working volume

Starts at 700 mm
Measurement rate 2

335 Hz
Latency

~4 ms
Tracking specs
  • Hybrid tracking: reflective spheres / disks, active wired and wireless
  • Acquisition: parallel (all fiducials at the same time)
  • Max. simultaneous markers3 : 16
  • Max. fiducials per marker: 6
Certifications

  • IEC 60601-1:2005

  • IEC 60601-1:2005/AMD1:2012

  • IEC 60601-1-2:2014

  • CB certificate available here

(1) Based on a single fiducial stepped uniformly throughout the measurement volume at 20°C.
(2) Depending on user’s computer, network connection and numbers of blobs detected in the pictures.
(3) Full speed is preserved for 4 markers of 4 fiducials. (i.e. 16 fiducials).

Due to continuous improvements, Atracsys reserves the right to modify the information or specifications without
prior notice.

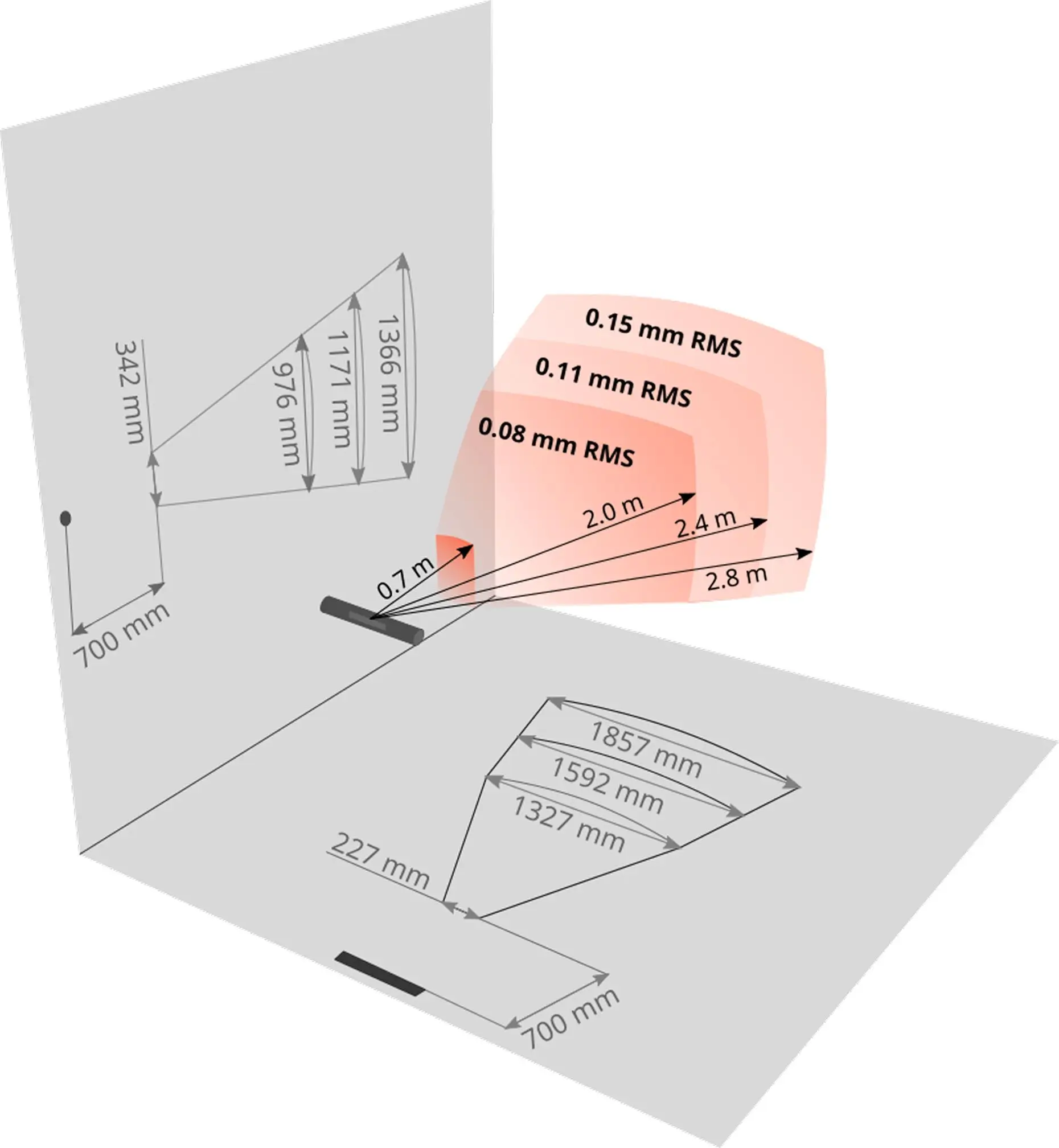

3D diagram showing measurement zones with labeled distances and angles. Red shaded areas indicate zones with RMS values of 0.08 mm, 0.11 mm, and 0.15 mm for low latency tracking at various depths from a central black object.
