Camera
comparison tool
Choosing the right camera technology among different advantages in terms of tracking volume and acquisition rate for each model, can be challenging. To help you make an informed decision, use the optical tracker comparison tool below in combination with a clear understanding of your system’s requirements. Try our camera tracking comparison: this will guide you toward the most suitable solution for your application.
 fusionTrack™ 500
|

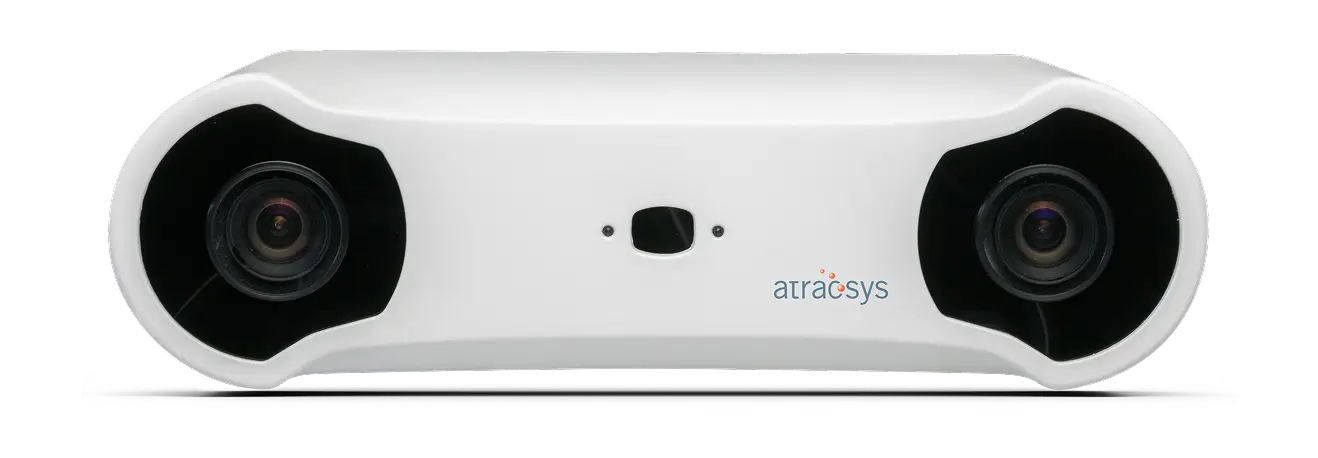

 fusionTrack™ 250
|

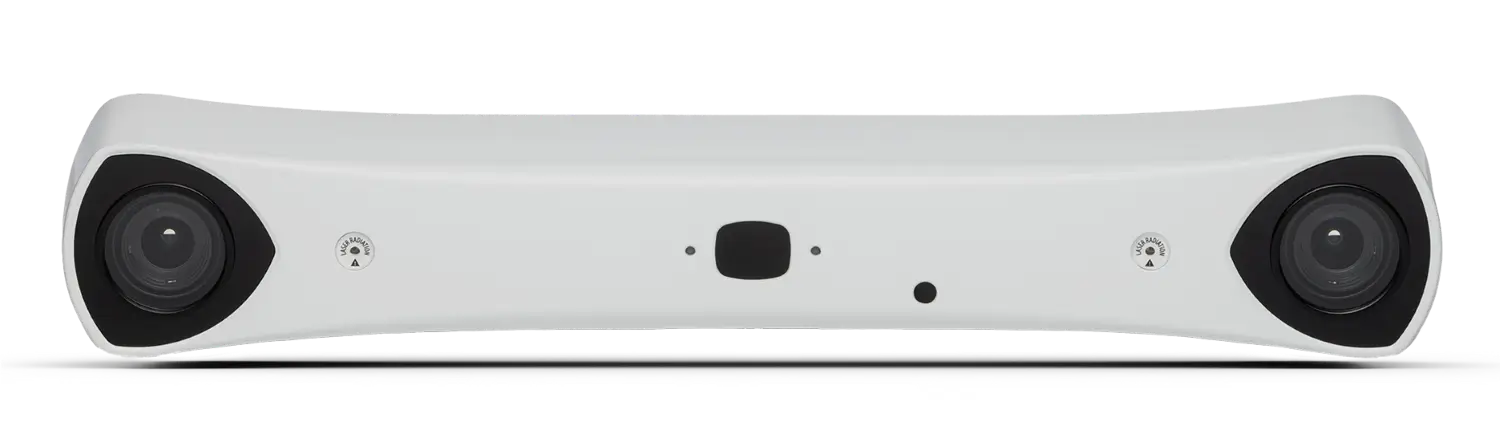

 spryTrack™ 300
|
 spryTrack™ 180
|
|
|---|---|---|---|---|
| Size | 528 mm x 80 mm x 88 mm | 298 mm x 90 mm x 99 mm | 356.5 mm x 60.5 mm x 55 mm | 236.3 mm x 60.3 mm x 50.5 mm |
| Weight | 2.3 kg | 1.4 kg | 1.07 kg | 692 g |
| Accuracy | 0.11 mm RMS up to 2.4 m 0.22 mm 95% CI¹ up to 2.4 m |
0.09 mm RMS up to 1.4 m 0.18 mm 95% CI¹ up to 1.4 m |
0.14 mm RMS up to 1.4 m 0.27 mm 95% CI¹ up to 1.4 m |
0.19 mm RMS up to 1.4 m 0.36 mm 95% CI¹ up to 1.4 m |
| Working volume | from 700 mm to 2800 mm | from 400 mm to 2400 mm | from 400 mm to 2400 mm | from 300 mm to 1800 mm |
| Image acquisition | IR tracking images | IR tracking images | spryTrack 300 IR: marker based tracking, 3D applications spryTrack 300 RGB: marker based tracking, 3D applications, RGB |
IR tracking images |
| Acquisition rate | 335 Hz | 120 Hz | 54 Hz | 54 Hz |
| Latency | ~4 ms | ~10 ms | ~25 ms | ~25 ms |
| Mounting | 4x M4 screws Tripod 1/4-20 UNC |
4x M4 screws | 4x M3 screws | 4x M3 screws |
| Generic extension port | Trigger out, timestamp retrieval, synchronization of multiple units | Not applicable | Not applicable | Not applicable |
| Power requirements | Power over Ethernet+ (PoE+, IEEE 802.3at Type 2): 42.5–57.0 V DC, 0.6 A max, 25.5 W max | Power over Ethernet+ (PoE+, IEEE 802.3at Type 2): 42.5–57.0 V DC, 0.6 A max, 25.5 W max | UBS Power Delivery (15W): 5 V,3 A; 9 V,1.67 A; 12 V,1.25 A | UBS Power Delivery (15W): 5 V,3 A; 9 V,1.67 A; 12 V,1.25 A |
| SDK | C (DLL), C++, Python wrapper, Matlab wrapper | C (DLL), C++, Python wrapper, Matlab wrapper | C (DLL), C++, Python wrapper, Matlab wrapper | C (DLL), C++, Python wrapper, Matlab wrapper |
| Max fiducials per marker | 6 | 6 | 6 | 6 |
| Max simultaneous markers | 16 | 16 | 16 markers in USB 4 markers in BTLE |
16 markers in USB 4 markers in BTLE |
| Interface | Gigabit Ethernet 1000BASE-T (IEEE 802.3ab) | Gigabit Ethernet 1000BASE-T (IEEE 802.3ab) | USB 3.2 Gen 1x1 | USB 3.2 Gen 1x1 |
Download the chart with technical specifications for all our cameras
